Microchannel tube type dedicated temperature control system

In the product development and production processes of the chemical and pharmaceutical industries, temperature control is crucial for safe and high-quality reaction products. Putec's PTHC series is suitable for process industry and process engineering, and is applied to dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Temperature control accuracy: ± 0.5 ℃
Temperature control object: material temperature or outlet temperature
Heating and cooling power: 2.5kw 50kw

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Name

Refrigeration and heating methods
temperature range
Flow control range
Pressure control range
Main applications
major function
Temperature control mode
Control system
compressor
Expansion valve
Solenoid valve
evaporator
communication protocol
External input
Distribution power
Cooling form
Shell material
Optional connecting pipeline
Equipment advantages
Equipment advantages
Expansion and upgrading
Expansion and upgrading

Parameter

Refrigeration: steam compression refrigeration, heating: electric heating
-60 ° C~250 ° C (customizable according to requirements) (unloaded)
2L/min~150L/min
0~6bar
Applicable to new energy vehicle power battery charging and discharging testing, thermal performance testing, drive motor thermal performance testing, reliability testing, etc
Equipped with pressure, temperature, and flow sensors, it can achieve functions such as temperature control, pressure control, and flow control.
Control equipment outlet temperature
7-inch color touch screen, temperature curve display and recording

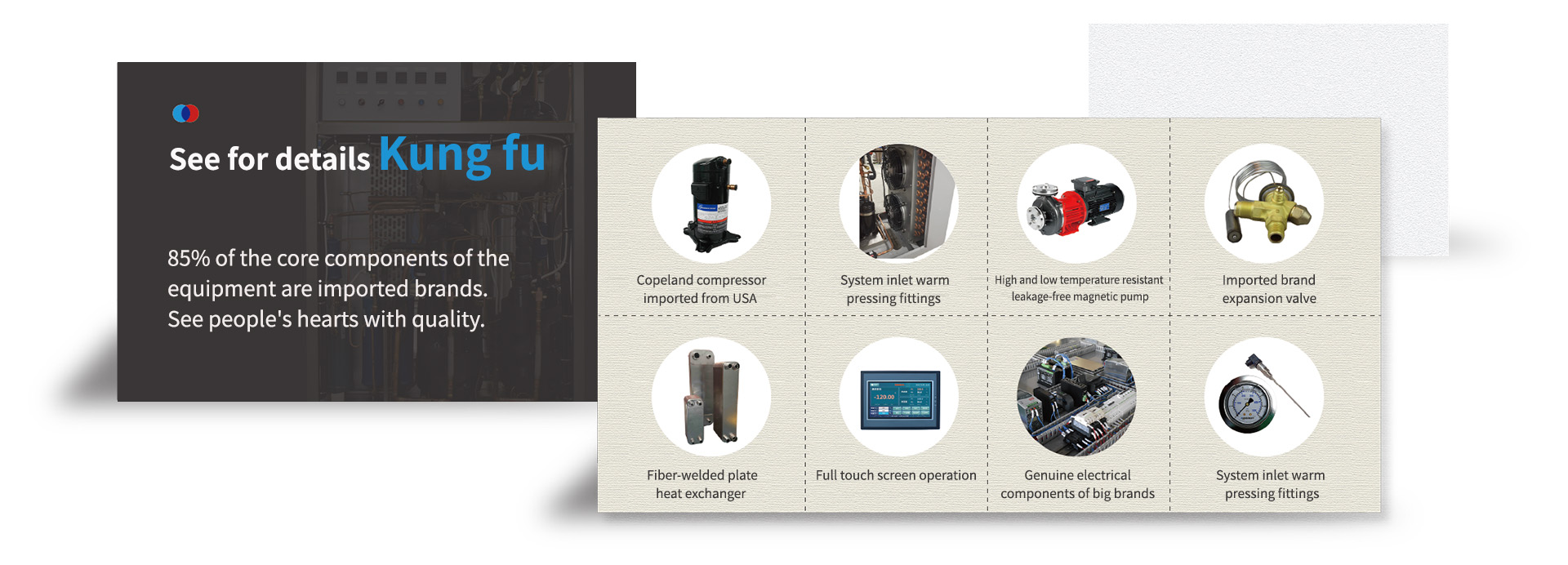

Taikang fully enclosed piston compressor, Emerson Valley wheel scroll compressor from the United States
Danfoss/Emerson Thermal Expansion Valve
Castor/Emerson/Danfoss solenoid valve
Danfoss/Gaoli/Baode Plate Heat Exchanger
CAN communication bus
External temperature sensor port, USB data interface
4.5kW ~80kW
Air cooled or water-cooled (suffix "W" for water-cooled models)
Electrostatic spray galvanized sheet/stainless steel 304
Metal insulation pipe or fluorine rubber pipe or silicon rubber pipe
1. Fully enclosed system: does not produce oil mist at high temperatures and does not absorb air moisture at low temperatures. The system will not increase pressure due to high temperatures during operation, and automatically replenishes thermal conductivity medium at low temperatures.
2. Safety protection function: With self diagnostic function; Multiple alarm protection: protection functions for circulating pump failure, compressor overheating, high pressure, etc
1. One to many: A single device can output multiple outputs with multiple loads, each path can independently control temperature, flow, and pressure
2. Customized explosion-proof: can be upgraded to positive pressure explosion-proof or explosion-proof explosion-proof

Product recommendations

Also known as: contact type high and low temperature equipment, contact type local rapid temperature rheometer, contact type chip high and low temperature testing equipment, energy transfer is achieved by directly adhering the testing head to the tested device. Compared with traditional airflow type high and low temperature equipment (heat flow meter, temperature box, etc.), it has the characteristics of high temperature rise and fall efficiency, simple and convenient operation, compact size, and low noise.

Contact type high and low temperature impact machine

Applied to the heating and cooling of wafer testing platforms and Chuck, using silicone oil or fluorinated liquid circulation for precise temperature control of ± 0.1 ℃. The liquid cooler mainly consists of a heating circulation system, cooling system, control system, box, etc. By heating and cooling the unit itself, the heat carrying fluid is transported to the outside world to meet the process conditions.

Liquid cooled refrigeration unit

In terms of reliability testing for automotive grade chips, Shanghai Putaike High and Low Temperature Testing Machine has unique advantages that are different from traditional high and low temperature impact testing chambers: fast temperature change rate, fast temperature rise/fall of 18 ℃ per second, real-time monitoring of the actual temperature of the tested component, and the temperature of the impact airflow can be adjusted at any time. It can perform high and low temperature impact on a single IC among many components on the PCB circuit board separately, without affecting other peripheral components

High temperature testing of automotive chips

Putek's PTHC series is suitable for process industry and process engineering, and is applied in dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, and combination chemistry, as well as in low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Integrated temperature control system
